Technical Specifications: Heavy-Duty Connector Insert HE-006-FC
Product Identification
Series: HE

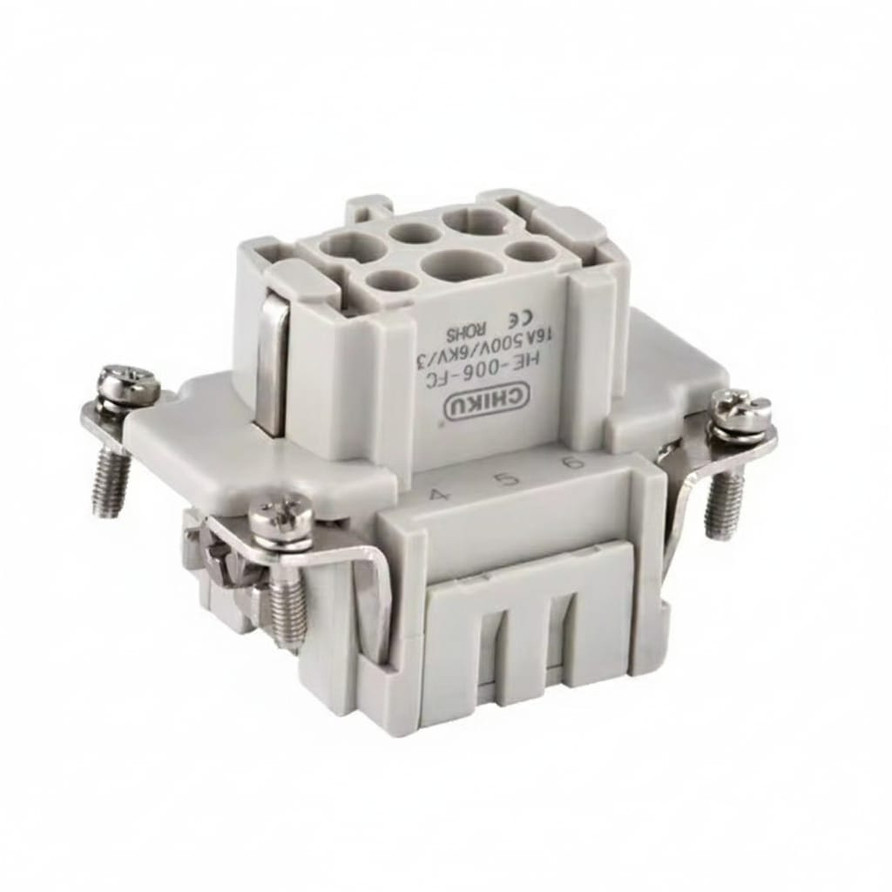

Insert Model (Female): HE-006-FC
Type: Heavy-Duty Industrial Connector Insert.
Electrical Specifications
Rated Current: 16A
Rated Voltage: 500V
Rated Impulse Voltage: 6kV
Pollution Degree: 3
Contact Resistance: ≤ 1mΩ
Insulation Resistance: ≥ 10¹⁰ Ω
Mechanical and Physical Characteristics
Number of Poles: 6 + PE (Protective Earth).
Terminal Type: Screw terminal.
Wire Gauge (Conductor Cross-section): 0.5 mm² to 2.5 mm² (AWG 20 - AWG 14).
Mating Cycles: ≥ 500
Insertion/Extraction Force: 20N - 45N
Materials and Operating Conditions
Insert Material: Polycarbonate (PC), self-extinguishing.
Contact Material: Copper alloy, silver-plated.
Flammability Rating (acc. to UL94): V-0.
Operating Temperature: -40°C to +125°C.
Standards and Certifications
Compliance: DIN EN 61984 / DIN EN 175301-801.
Common Certifications: CE, RoHS, UL.
